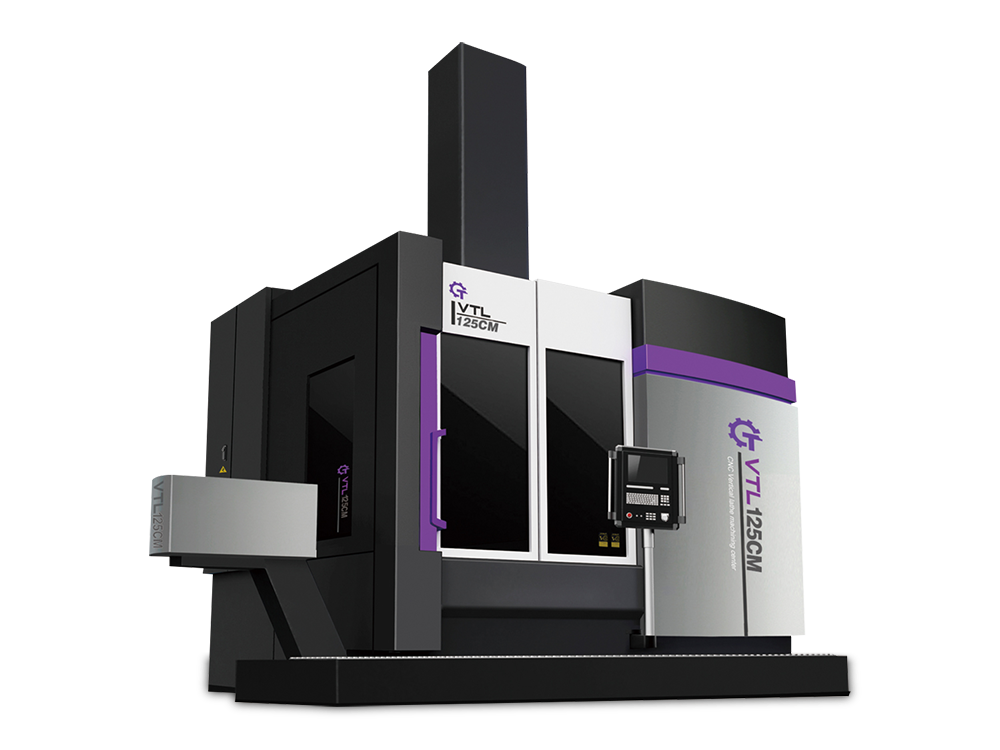

VTL-CM CNC Vertical Turning Milling Center Series: 160、200、250

1.VTL-CM series moving beam vertical tuming milling center is our company according to the market demand,solving key processingtechnology,a new machine tool structure design,technology research,machine debugging work such as designing fix beam doublecolumn vertical milling center,Machine using the host protection.the structure of machine,electricity,liquid concentration layout.It ismainly composed of lathe bed,rest x,Z to move and workbench rotation with C axis,milling shaft B,operation table,automatic chip oval device,temperature control device,automatic lubrication,hydraulic syste protection,electro and electric control parts.

2.The machine numerical control sy ball screw,hydraulic parts and other key parts picked from the domestic and foreign famous brand manufacturers products

3.Introduction of mature technology,reliable selection of imported fittings,and our advanced processing,testing ways,to ensure that themachine has high machining accuracy,high rigidity,high reliability,and a rational layout,convenient operation,high automation degree,etc Can realize automatic to ol change device,automatic processing.improve the processing quality,reduce operating costs.

4.The machine is suitable for power generation,shipbuilding,metallurgy,mining and other industies of large parts processing.

Specification		Unit	Model
			VTL160CM	VTL200CM	VTL250CM
Processing capacity	Work table diameter	mm	1400	1600	2000
	Max. swing diameter	mm	1600	2000	2500
	Max. turning diameter	mm	1600	2000	2500
	Max height of workpiece	mm	1200	1200	2000
	Max. weiqht of workpiece	kg	5000	8000	12000
	Max torque of work table	N.m	17500	25000	28000
Accuracy	Processing accuracy		IT6-IT7	IT6-IT7	IT6-IT7
	X/Z position accuracy	mm	0.018/0.020	0.018/0.020	0.018/0.020
	X/Z repeat position accuracy	mm	0.008/0.01	0.008/0.01	0.01/0.01
	C axis position accuracy	sec	±3"	±3"	±3"
	C axis repeat position accuracy	sec	3"	3"	3”
Turning spindle	Spindle speed range	r/min	1-300	1-250	1-200
	Work table soeed chanae blcxk		stepless with two blocks	stepless with two blocks	stepless with two blocks
	C axis speed	rpm	0.01-7.0	0.01-6.0	0.01-5.0
Main motor output power	30 mins rated	kW	30	45	55
	Continuous rated	kW	26	37	45
Tuminq max. cuttinq force		kN	25	25	30
Milling shaft	Max. speed	rpm	2250	2250	2250
	Motor power	kW	AC11/15	AC11/15	AC11/15
Ram	Ram section size	mm	□ 220X220	□ 250X250	□ 250X250
	X axis travel	mm	-200 - +950	-200-+1150	-200 - +2000
	Z axis travel	mm	900	900	1200
Feeding speed	Cutting feeding speed	mm/rev	0.01-50	0.01-50	0.01-50
	Rapid feeding speed	mm/min	8000	8000	8000
Beam travel		mm	800	800	1000
Beam lifting gear distance		mm	4x200	4x200	4x250
ATC Tool changer	Tool capacity		16	16	16
	Turning tool bar size	mm	32x32	32x32	40x40
Total power	Voltage	V	AC380	AC380	AC380
	Voltage wave range		-10~ +10	-10~ +10	-10~ +10
	Frequency	Hz	50	50	50
	Total power	kW	68	75	95
System	CNC device model		SIEMENS840DsL	SIEMENS840DsL	SIEMENS840DsL
Machine weiqht		kg	25100	28200	49000
Overall dimension of machine(LxWxH)		mm	7000x4900x5600	7500x5300x5800	7800x6500x7350

The company keeps improving its products.lt has the right to change the design.specification dimension and structure of the machines without prior notice.
