CNC VERTICAL LATHE

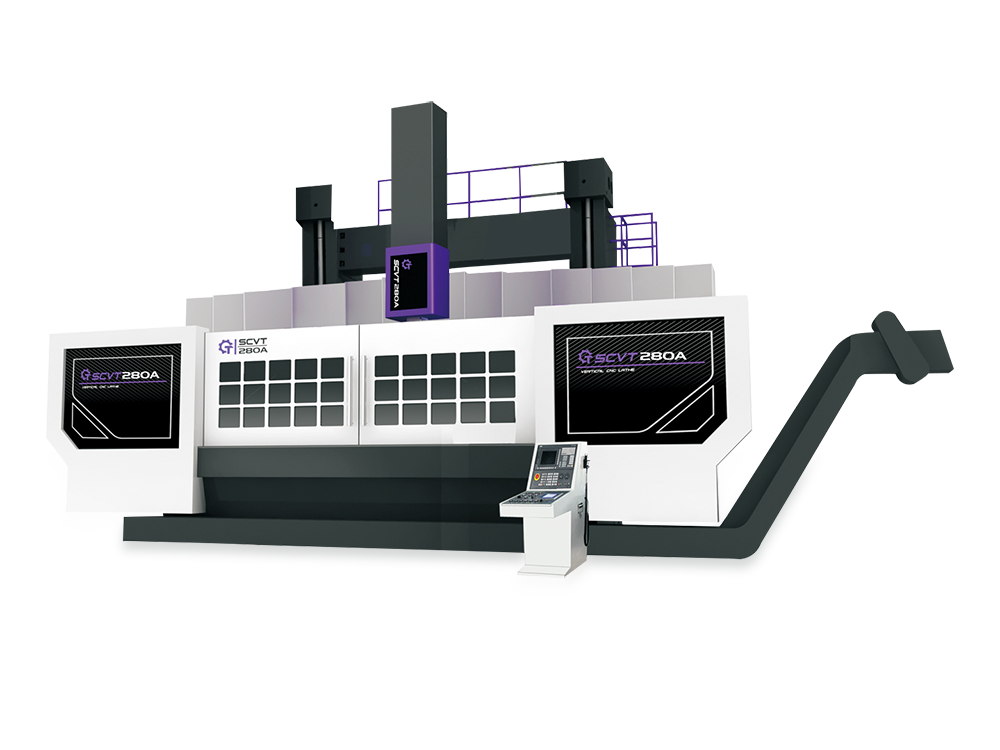

SCVT Double Column CNC Vertical Lathe series 280、350、400

This series of machine tools used in hard alloy and ceramic cutting tool,it is processing for the black metals and some non-metallic parts within the outer cylinder Inside and outside,the cone surface,face,groove,boring and rotary surface coarse fine turning.

Return to product list

Message consultation

Product features
Technical parameter

1.This series of machine tools used in hard alloy and ceramic cutting tool,it is processing for the black metals and some non-metallic parts within the outer cylinder Inside and outside,the cone surface,face,groove,boring and rotary surface coarse fine turning.

2.Machine tool main drive,driven by a dc motor through two spindle speed change mechanism,realize the workbench's speed range.

3.Machine tools are connected by left and right column,beam,beam,the components of frame type,such as table base structure strong rigidity,high load bearing,beam clamping mechanism hydraulic locking device for multiple station,its stable and reliable work.

4.The machine tool feeding head adopts double frame structure.Right tool post for numerical control tool rest,left tool post for SPC tool rest About machine tool rest slide horizontal motion X,U axis,vertical ram,a,Z,W axis four axis adopt servo motor drive,the high precision will gears transmission ball screw,realize the rest feed and fast moving.

5.Workbench use thermal symmetric structure.workbench main shaft adopt high precision adjustable double row short cylindrical roller bearing radial clearance centering axial using constant current static pressure guide rail,and configure the oil temperature is device,make workbench has high rotating accuracy,bearing capacity is big,small thermal deformation characteristics.

6.Vertical tool rest horizontal guide rail oil static pressure unloading guide,skid composite guide rail,sliding guide rail For vertical ram movement sliding guide rail.

7.The numerical control system adopts Siemens or rexroth system.Customer also can choose other system.

Specification	Unit	Model
Specification	Unit	SCVT280 H/W	SCVT350 H/W	SCVT400 H/W
Max. turning diameter	mm	2800	3500	4000
Table diameter	mm	2400	3150	3150
Max height of work piece	mm	1800/2000	2000/2800	2000/2800
Max weight of work piece	t	16	32	32
Horizontal travel of head	mm	1600	1840	2250
Cutting force of right head	KN	35	35	35
Cutting force of left head	KN	30	30	30
Swivel of left and right		±30°	±30°	±30°
Max torque of table	KN.m	63	80	80
Section dimension of ram	mm×mm	220×220	220×220	220×220
Vertical travel of ram	mm	1250	1250/1400	1250/1400
Power of main motor	KW	DC55	DC75	DC75
Speed range of table	r/min	0.5-70(II steps)	0.5-60(II steps)	0.5-60(II steps)
Rapid travel of head	mm/min	4000	4000	4000
Guideway pair of table		Hydrodynamic	Hydrodynamic	Hydrodynamic
Torque of feed motor	N.m	48	48	48
CNC system		SIEMENS
Weight of machine(approx)	Kg	40000	51000	56000

The company keeps improving its products.lt has the right to change the design,specification dimension and structure of the machines without prior notice.
