CNC VERTICAL LATHE

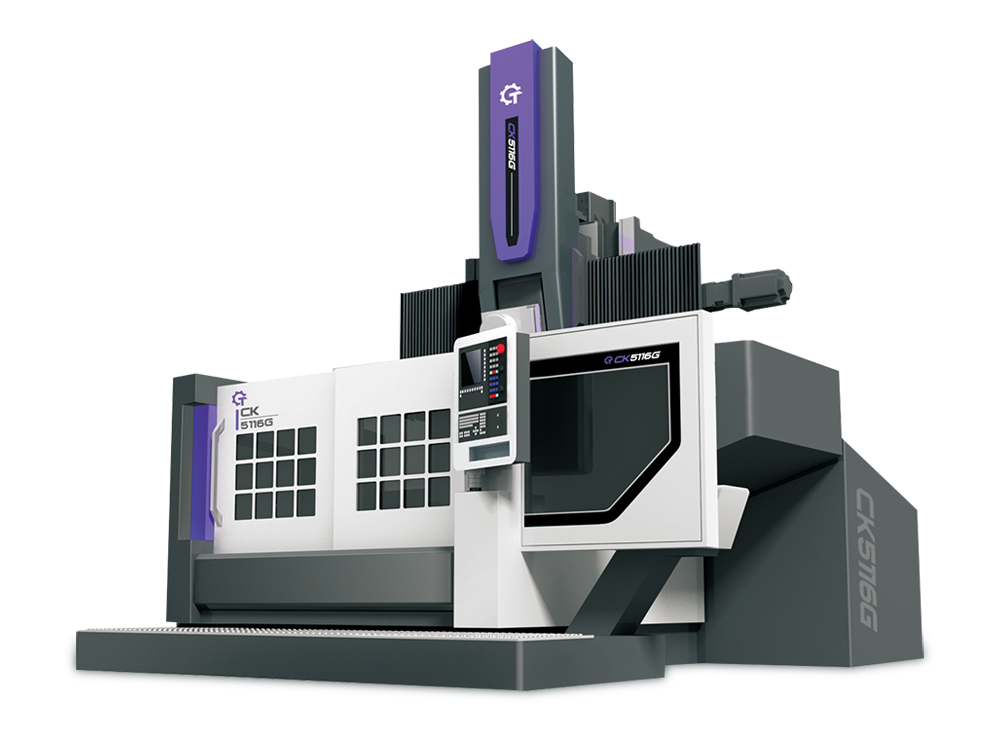

CK5112G / CK5116G / CK5116D / CK5120D Single-column CNC vertical lathe series

The CNC system use Siemens or Fanuc system,which is easy to operate and program.The system has abilities of linear interpolation,arc interpolation,spindle ability,tool ability assistant ability,clearance compensation,self-diagnosis ability,program storage,high speed,high precision and high reliability,graphics contour programming(outline basic graphic element can be quickly and easily build parts program),with graphic process cycle(any contour of workpiece processing)etc.

Return to product list

Message consultation

Product features
Technical parameter

1.This series of machine is cnc vertical lathe,which is designed for high precision,high stability and high rigidity.It applies to the turning for the tools such as hard alloy and high speed steel machine ferrous metal,non-ferrous metal,and part of non-metal parts.This machine tool is suitable for all kinds of rough and finish machining of complicated surface of revolution.It can also finish such kinds of processing as cutting groove,boring,tapping etc.

2.The machine structure is single column style.The guide way of its table is slide one with rolling guide.Feeding system is fulfilled by the ball screw and AC servo motor,running with high accuracy.

3.The CNC system use Siemens or Fanuc system,which is easy to operate and program.The system has abilities of linear interpolation,arc interpolation,spindle ability,tool ability assistant ability,clearance compensation,self-diagnosis ability,program storage,high speed,high precision and high reliability,graphics contour programming(outline basic graphic element can be quickly and easily build parts program),with graphic process cycle(any contour of workpiece processing)etc.

4.Vertical structure ram:T-ram with 4 station electric tools.

Specification	Unit	model
Specification	Unit	CK5112G	CK5116G	CK5116D	CK5120D
Max. turning diameter	mm	1250	1600	1600	2000
Table diameter	mm	1000	1400	1400	1600
Max. height of workpiece	mm	1000	1000/1500	800	800
Max. weight of workpiece	kg	5000	8000	5000	8000
Speed range of table(stepless)	r/min	6.3-250	5-200	1-250	1-200
Tool holder range of feeds (stepless)	mm/min	0.2-500	0.2-500	0.2-500	0.2-500
Vertical tool holder ram travel	mm	650	800	800	800
Travel of beam	mm	750	760	定梁	定梁
Rapid traverse of tool head	mm/min	8000	8000	8000	8000
Horizontal travel of tool head	mm	700	915	915	1500
Max.cutting force of vertical tool head	kN	20	25	25	25
Max. torque of table	kN.m	13.5	17.5	17.5	25
X/Z axis feed motor	N.m	22	27	27	27
Power of main motor	kW	AC： 22/30	AC： 30/37	AC： 26/30	AC： 37/45
X/Z Positioning accuracy	mm	0.018/0.02	0.018/0.02	0.018/0.02	0.018/0.02
X/Z Repeat positioning accuracy	mm	0.008/0.015	0.008/0.015	0.008/0.015	0.008/0.015
Tool capacity	刀位	4工位(可选5工位)	4工位(可选5工位)	4工位(可选5工位)	4工位(可选5工位)
CNC system		SIEMENS 828D (可根据客户要求选配）
Weight of machine	kg	10780	12780	19500	22500
verall dimensions of machine(LxWxH)	mm	3000x2800x3200	3200x3000x3200	4000x3500x3900	4500x3500x3900

The company keeps improving its products.lt has the right to change the design,specification dimension and structure of the machines without prior notice.
