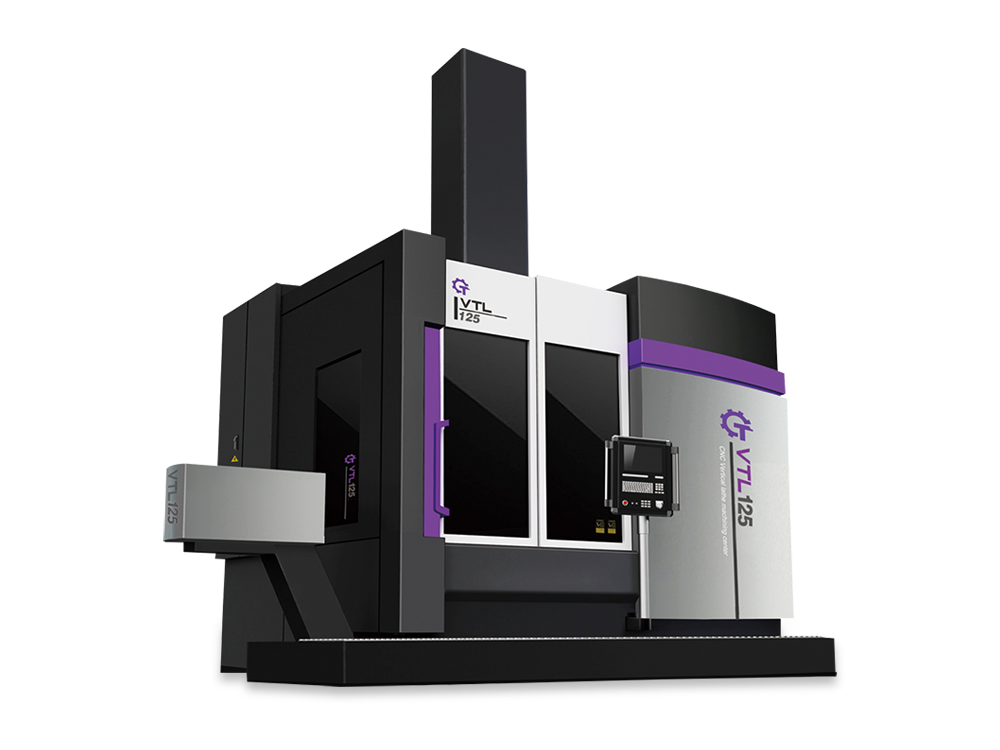

VTL CNC Vertical Lathe Machine Series: 125、160、200、250

CNC VERTICAL LATHE

VTL CNC Vertical Lathe Machine Series: 125、160、200、250

The machine is suitable for power generation,shipbuilding,metallurgy,mining and other industries of large parts processing.

Message form:

1.VTL CNC vertical lathe machine is our new design product for the market demand for solving the key processing technology.It is moving beam single column CNC vertical lathe with new structure design,technology research,machine debugging etc.

2.The main parts use the China and foreign famous brand like the CNC control system,main electric parts,main bearings,ball screw,main hydraulic parts etc.

3.The introduction of mature technology,reliable selection of imported fittings,and our advanced processing,testing ways,to ensure that the machine has high machining accuracy,high rigidity,high reliability,and have a feature of rational layout,convenient operation,high automation degree etc.Machine can match organic to tool device,can realize automatic tool change device,automated processing,improve the processing quality,and reduce operating costs.

4.The machine is suitable for power generation,shipbuilding,metallurgy,mining and other industries of large parts processing.

Specification Unit Model
VTL125/125A VTL160/160A VTL200/200A VTL250/250A
Processing capacity Work table diameter mm 1000 1400 1600 2000
Max. swing diameter mm 1250 1600 2000 2500
Max.turning diameter mm 1250 1600 2000 2500
Max. height of workpiece mm 1000 1400/1200 1400/1200 2000/2000
Max.weight of workpiece kg 4000 8000 10000 16000
Max.torque of worktable N.m 12500 17500 25000 28000
 Accuracy Processing accuracy   IT6-IT7 IT6-IT7 IT6-IT7 IT6-IT7
X/Z position accuracy mm 0.018/0.020 0.018/0.020 0.018/0.020 0.02/0.020
X/Z repeat position accuracy mm 0.008/0.01 0.008/0.01 0.008/0.01 0.01/0.01
Main gear box Spindle speed ranqe r/min 1-350 1-300 1-250 1-200
Work table speed chanqe block   stepless with two bilocks
Main motor output power 30mins rated kW 22 30 45 55
Continuous rated kW 18 26 37 45
Ram Ram section size mm T形滑枕/□ 220X220
X axis travel mm -200 〜+700 -200 ~ +950 -200 ~+1150 -200 ~ +2000
Z axis travel mm 800/900 800/900 800/900 800/1200
Feeding speed Cuttinq feedinq speed mm/rev 0.01-50 0.01-50 0.01-50 0.01-50
Fast feeding speed mm/min 8000 8000 8000 8000
Beam liftinq qear distance mm 3x200 4x200 4x250 4x250
Tool changer Station   4/12 4/12 4/12 4/12
Tuminq tool bar size mm 32x32 32x32 40x40 40x40
Total power Voltaqe V AC380 AC380 AC380 AC380
Voltaqe wave ranqe   -10~ +10 -10- +10 -10- +10 -10- +10
Frequency Hz 50 50 50 50
Total power kW 50 68 75 95
System CNC device model   SIEMENS 828D
(可根据客户要求选配)
SIEMENS 828D
(可根据客户要求选配)
SIEMENS 828D
(可根据客户要求选配)
SIEMENS 828D
(可根据客户要求选配)
Machine weight   kg 18250 22500 25500 47000
Overall dimensions of machine(LxWxH) mm 5400x3950x4250 6400x4950x5250 7150x5250x5300 7800x6200x7350
The company keeps improving its products.lt has the right to change the design,specification dimension and structure of the machines without prior notice.
