CNC VERTICAL LATHE

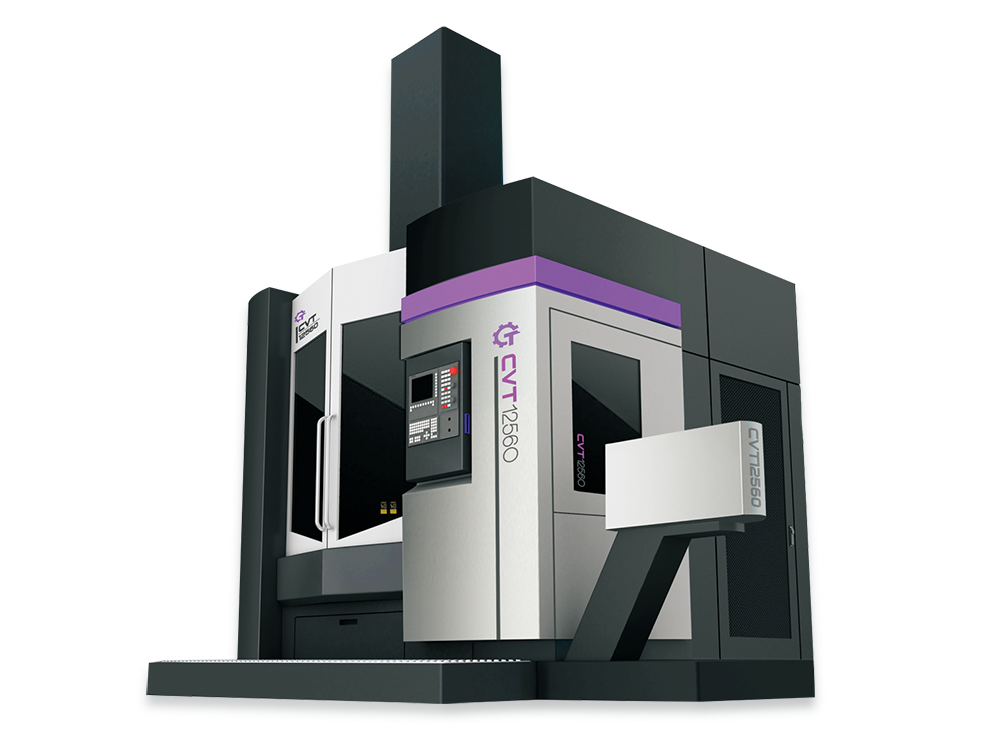

CVT8050-NC/CVT12560-NC CNC Vertical Lathe

This lathe is mainly made up of spindle, base, bridge beam, tool rest, etc. and has advantages of high rotation speed, large torque and high rigidity. Being economical, high-efficient and energy-saving, It becomes a choice for complex plates and short axis parts machining in each machinery industry.

Return to product list

Message consultation

Product features
Technical parameter

This series of machine are the newly designed CNC machine tools from our factory, which are above the 800 specification. It is developed with dedication to adapt to engineering machinery, circular knitting machine, motor parts machining. The work pieces adopt hydromantic and automatic clamping or manual clamping, which is easy for users. This lathe is mainly made up of spindle, base, bridge beam, tool rest, etc. and has advantages of high rotation speed, large torque and high rigidity. Being economical, high-efficient and energy-saving, It becomes a choice for complex plates and short axis parts machining in each machinery industry.

Item		Unit	model
Item		Unit	CVT8050-NC	CVT12560-NC
processing capacity	Max. swing diameter	mm	1000	1250
	Max. turning diameter	mm	800	1250
	Max. height of workpiece	mm	500	600 (可选700)
Spindle	Speed range	r/min	10-600	10- 400 two blocks stepless
	Diamotor of chuck	mm	can choose hydraulic chuck	manual 4 jaw
	Spindle nose type		A2-11
	Spindle bearing (front)	mm	260	609. 6
X/Z	X axis travel	mm	-50、+500	-50、+700
	Z axis travel	mm	500	600
	X axis rapid moving	m/min	12	12
	Z axis rapid moving	m/min	8	8
Motor power	pindle motor (rated/30min)	kW	30	22
	X-axis sorvo motor	kW	3.5	3.5
	Z-axis servo motor	N.m	18	18
	Tool holder type	工位	4工位 (可选5工位及八方滑枕）	4工位 (可选5工位及八方滑枕）
Tool holder	Cylindrical cutter size	mm	32x32	32x32
	Machining accuracy		IT6	IT6
	X/Z positioning accuracy	mm	0.018/0.02	0.018/0.02
	X/Z repeat positioning accuracy	mm	0.0075/0.01	0.0075/0.01
System	CNC device model		SIEMENS 828D 或 GSK980TDC	SIEMENS 828D 或 GSK980TDC
Weight	Total weight	kg	6800	9800
verall dimensions of machine(LxWxH)		mm	3000x2800x3600	3200x2800x3600

The company keeps improving its products.lt has the right to change the design,specification dimension and structure of the machines without prior notice.
