CK5116D-M / CK5120D-M CNC vertical turning grinding machine series

CNC VERTICAL LATHE

CK5116D-M / CK5120D-M CNC vertical turning grinding machine series

This machine is applicable to textile machinery, butterfly valve, power generation, shipbuilding, metallurgy, mining and other industries of large parts of processing.

Message form:

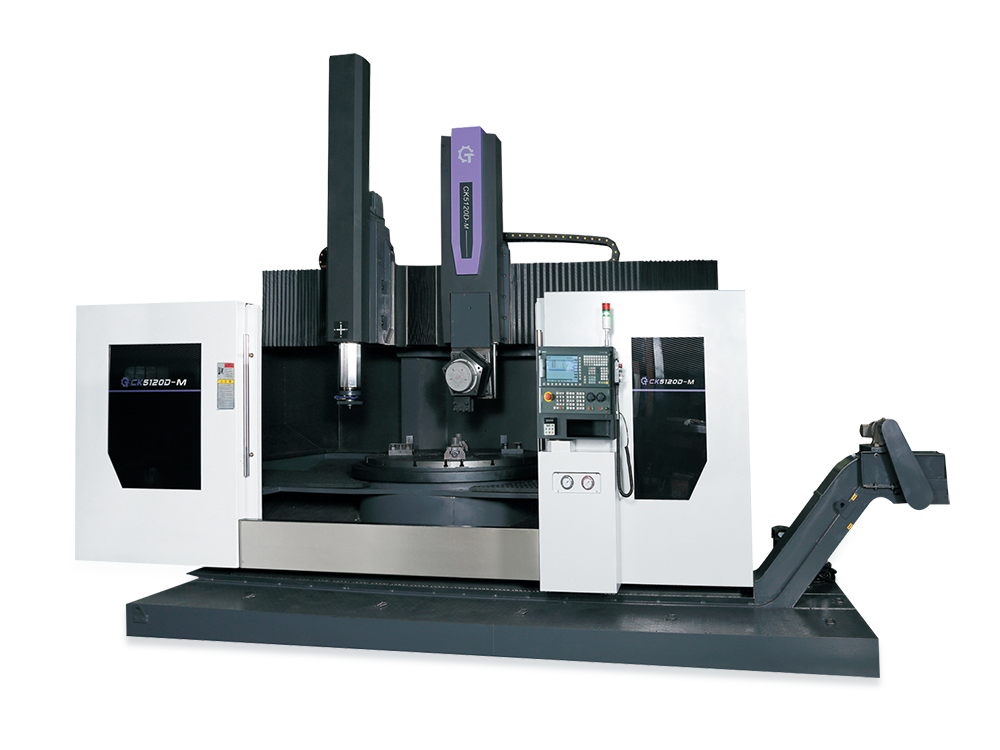

This machine is a combined machine with turning and grinding job. It is a fixed beam single column CNC double tool holder vertical lathe, machine was composed of rotating table, variable speed mechanism, all-in-one stand column, beam, left and right tool holder, control system, independent hydraulic control system. Left tool holder is grinding head, right tool holder is CNC turning head. It is use for machining disc parts include cylinder parts of outside and inside cone for turning and grinding. Turning tool holder and grinding wheel rack set on two side of machine, during machining tool holder and grinding wheel rack along the respective guide rail transverse movement and vertical movement. Spindle drive with workpiece rotation to finish turning and grinding. This machine is applicable to textile machinery, butterfly valve, power generation, shipbuilding, metallurgy, mining and other industries of large parts of processing.
Specification Unit Model
CK5116D-M CK5120D-M
Main parameter Work table diameter mm 1400 1600
Max. swing diameter mm 1600 2100
Max. turning diameter mm 1600 2000
Max. height of workpiece mm 800 800
Max. weight of workpiece kg 5000 8000
Max. torque of work table N.m 17500 25000
Main gear box Spindle speed ranqe r/min 1-300 1-250
Work table speed change block blocks 2 blocks stepless 2 blocks stepless
Main motor output power 30mins rated kW 30 37
Continuous rated kW 26 30
Grinding wheel motor power   kW 5.5 5.5
Feeding axis motor power X1 axis servo motor N.m 27 27
Z1 axis servo motor N.m 27 27
X2 axis servo motor N.m 27 27
Z2 axis servo motor N.m 27 27
Turning ram Ram section size mmxmm 320 T type ram 380 T type ram
Right vertical tool holder moving limit   ±20。 ?0?
X1 axis travel mm -100~+1300 -100~+1500
Z1 axis travel mm 800 800
Grinding ram Ram section size mmxmm 180X180 Eight square ram Eight square ram
Vertical grinding tool holder moving limit   ±20。 ±20。
X2 axis travel mm -1200-+300 -1400-+300
Z2 axis travel mm 800 800
Grinding wheel speed r/min 1500-3000 Stepless 1500-3000 Stepless
Grindinq wheel diameter mm Max.300 Max.300
Grinding wheel spindle taper hole   1:5 1:5
Feeding speed Cutting feeding speed mm/min 0.2-500 0.2-500
Rapid feeding speed mm/min 8000 8000
Tool changer Electrical tool turret   4工位(可选5工位) 4工位(可选5工位)
Turning tool bar size mmxmm 32X32 40x40
Weight achine weight (about) Kg 24000 29000
System CNC device model   SIEMENS828D SIEMENS828D
Machine size LxWxH mm 4000X3500X3900 4500X3500X3900
The company keeps improving its products.lt has the right to change the design,specification dimension and structure of the machines without prior notice.
