HORIZONTAL BORING MILLING MACHINE

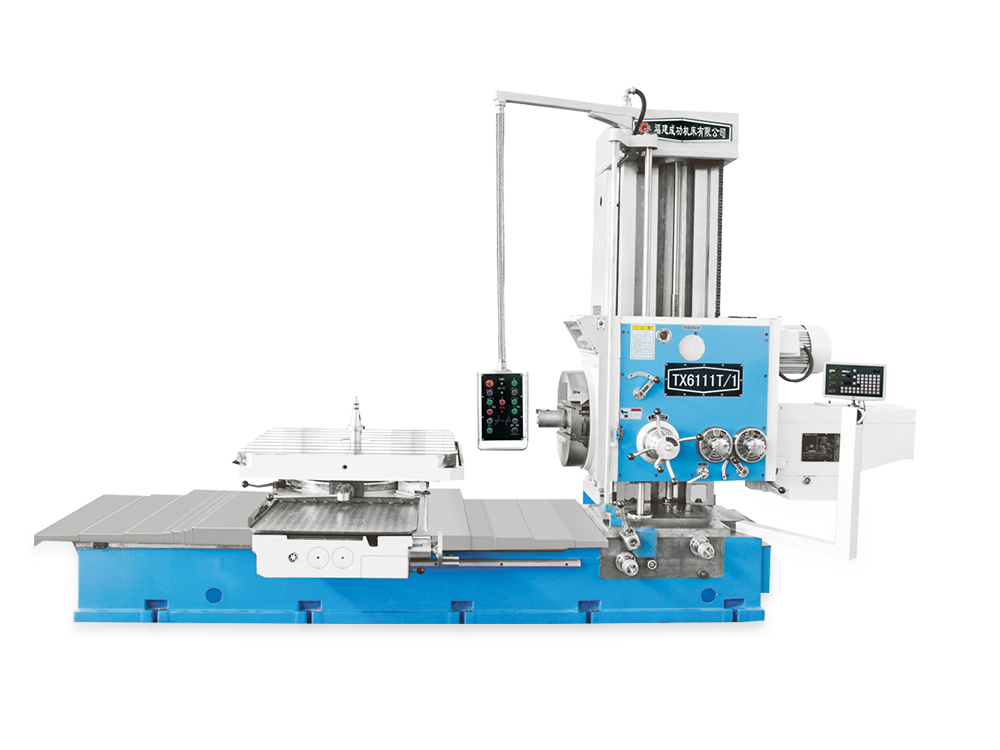

TX6111T/1 Horizontal milling and boring machine series

TX6111T series horizontal milling&boring machines are suitable for rough and precision boring,milling in large and medium parts and box-parts.It is equipped with an optical device for positioning 90°in the work table,that can satisfy the turn around processing requirements of the large box-parts.

Return to product list

Message consultation

Product features
Technical parameter

1.TX6111T series horizontal milling&boring machines are suitable for rough and precision boring,milling in large and medium parts and box-parts.It is equipped with an optical device for positioning 90°in the work table,that can satisfy the turn around processing requirements of the large box-parts.The machine bed use wide guice way,it has good structure rigidity and large cross travel of table.It is equipped with power draw bar which easy for change tools.

2.TX6111T series is provided with a DRo and its reading accuracy is 0.005mm,it has reliability position precision.The machine use PLC controller.

Specifications	Unit	Model
Specifications	Unit	TX6111T/1	TX6111T/2
Spindle diameter	mm	110	110
Spindle taper	mm	ISO50#(7:24)	ISO50#(7:24)
Spindle speed	r/min	9-1000(18级)	9-1000(18级）
Power of main drive motor	kW	11	11
Max. drilling capacity of spindle	mm	50	50
Max. boring capacity of spindle	mm	300	300
Speed of facing chuck	r/min	6-221	6-221
Traverse of facing chuck slide	mm	170	170
Max. boring capacity of facing chuck	mm	600	600
Table size (Lx W)	mm	1200X1100	1200X1100
Table load	kg	2500	4000
Transverse travel of table	mm	1200	with auxiliary rail
Vertical travel of spindle head	mm	1100	1300
ongitudinal travel of table	mm	1500	1500
Axial travel of spindle	mm	600	600
Rotary spindle、spindle box、worktable feeding range	mm/min	12 级0.04-6mm/无极	12级0.04-6mm/无极
DRO		X、Y	X、Y
Overall dimensions of machine(L x W x H)	mm	4900x2250x2950	4900x2850x3150
Weight of machine	kg	16000	18000

The company keeps improving its products.lt has the right to change the design,specification dimension and structure of the machines without prior notice.
