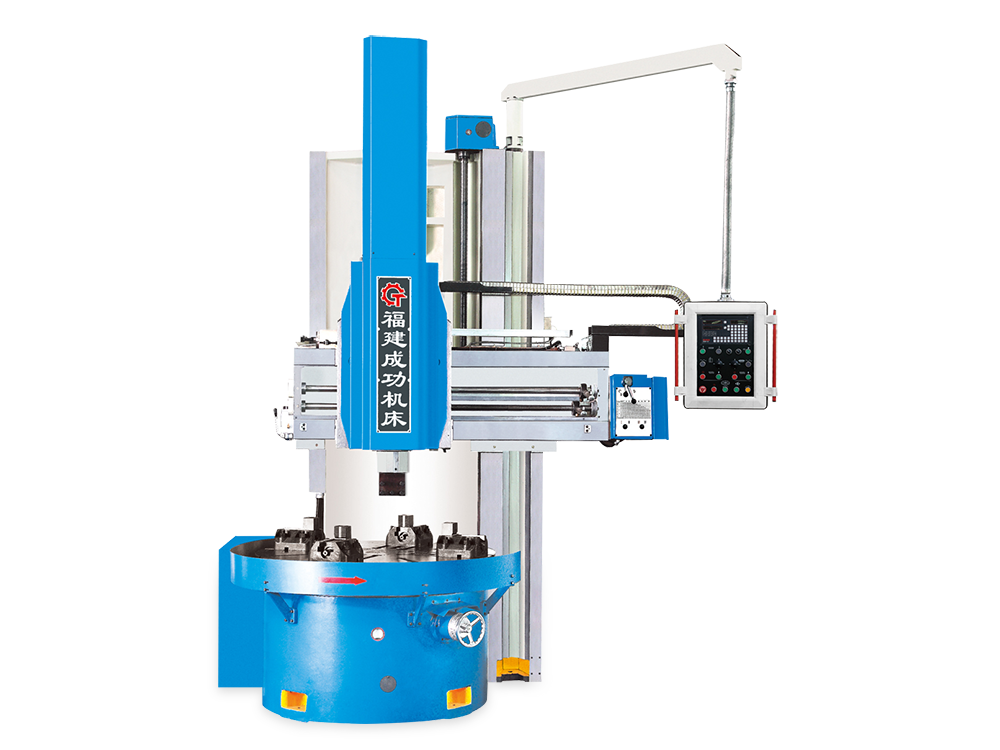

VERTICAL LATHE

C5116E-2单柱立式车床系列

This series of machine is used for various rough and finish turnings including internal and external cylindrical surface,conical surface,end face and grooving.

Return to product list

Message consultation

Product features
Technical parameter

1.This series of machine is used for various rough and finish turnings including internal and external cylindrical surface,conical surface,end face and grooving.

2.The work table uses dynamical pressure slide-way and NN30 dual cylinder roller bearing.It has features of high bearing capacity and revolving precision.

3.There are two vertical turret structure:T-ram,eight square ram. 4.Pentagonal tool slide is set on the vertical tool head,square tool slide is set on the side tool head.Both tool heads are balanced hydraulically.

5.The machine is controlled by PLC.With the DRO,with high reliability.

6.This machine has good shape and it is easy to operate.

7.The side tool head and the taper accessories are provided according to special demands.

Specification	Unit	Model
Specification	Unit	C5116E-2
Max turning diameter	mm	1600
Table diameter	mm	1400
Max height of work piece	mm	1500
Max weight of work piece	kg	5000
Speed range of table(16steps)	r/min	5-160
Range of feeds(12steps)	mm	0.8-86
Ran travel of rail head	mm	1000
Horizontal travel of side tool head	mm	630
Vertical travel of side tool head	mm	980
Max turning diameter of side tool head	mm	1400
Travel of cross rail	mm	1250
Rapid traverse of tool head	mm /min	1800
Swivel angle of vertical tool head	±o	30
Max cutting force of rail head	KN	25
Max cutting force of side head	KN	20
Max torque of table	KN.m	25
Height of tool bar section	mm	40
Power of main motor	KW	30
Overall dimensions of machine(L×W×H)	mm	2800×3000×3600
Weight of machine(approx)	Kg	14500

The company keeps improving its products.lt has the right to change the design,specification dimension and structure of the machines without prior notice.
