VERTICAL LATHE

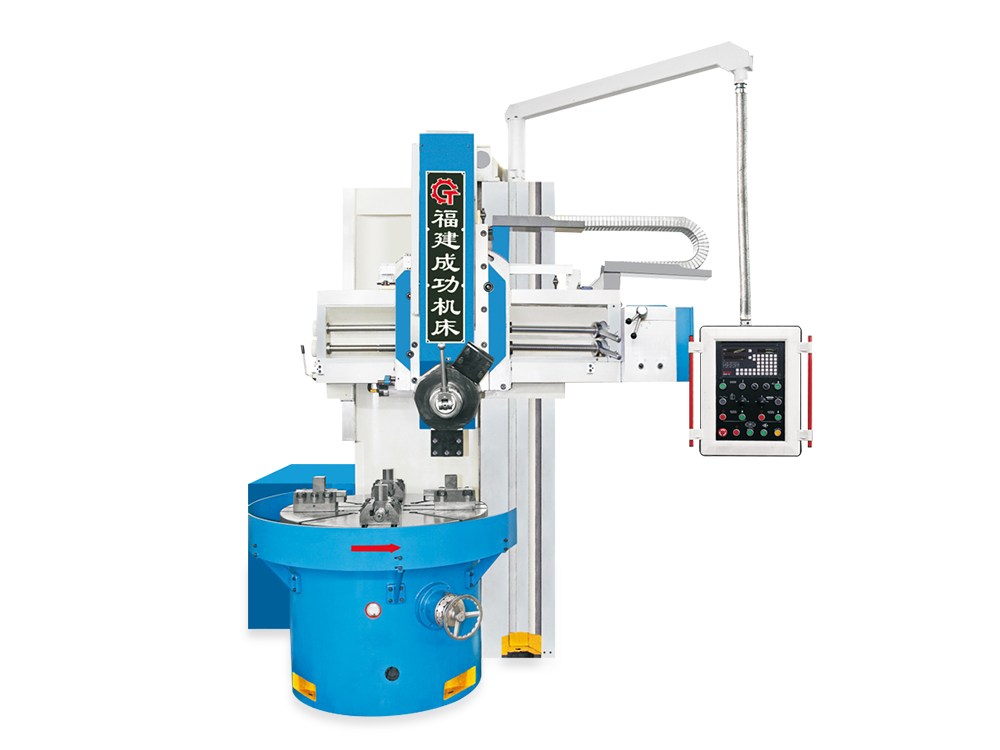

C5112E Single-column vertical lathe series

This series of machine is used for various rough and finish tunings including intemal and extemal cylindrical surface,conical surface end face and grooving.

Return to product list

Message consultation

Product features
Technical parameter

1.This series of machine is used for various rough and finish tunings including intemal and extemal cylindrical surface,conical surface end face and grooving.

2.The work table uses dynamical pressure slide-way and NN30 dual cylinder roller bearing.It has features of high bearing capacity and revolving precision.

3.Pentagonal tool slide is set on the vertical tool head,square tool slide is set on the side tool head.Both tool heads are balancedhydraulically.

4.The machine is controlled by PLC.With the DRO,with high reliability.

5.The machine has good shape and easy to operate.

6.The side tool head and the taper accessories are provided according to special demands.

Specification	Unit	Model
Specification	Unit	C5112E	C5116E	C5117E
Max turning diameter	mm	1250	1600	1700
Table diameter	mm	1000	1400	1400
Max height of work piece	mm	1000	1000	1000
Max weight of work piece	kg	4000	5000	5000
Speed range of table(16steps)	r/min	6.3-200	5-160	5-160
Range of feeds(12steps)	mm	0.8-86	0.8-86	0.8-86
Ran travel of rail head	mm	650	800	800
Horizontal travel of side tool head	mm	500	630	630
Vertical travel of side tool head	mm	980	980	980
Max turning diameter of side tool head	mm	1000	1400	1400
Travel of cross rail	mm	750	760	760
Rapid traverse of tool head	mm /min	1800	1800	1800
Swivel angle of vertical tool head	±o	30	30	30
Max cutting force of rail head	KN	20	25	25
Max cutting force of side head	KN	20	20	20
Max torque of table	KN.m	17.5	25	25
Height of tool bar section	mm	40	40	40
Power of main motor	KW	AC:22	AC:30	AC:30
Overall dimensions of machine	mm	2360×2300×3580	2800×3000×3870	2830×3000×3870
(L×W×H)	mm	2360×2300×3580	2800×3000×3870	2830×3000×3870
Weight of machine(approx)	Kg	9800	12580	13480

The company keeps improving its products.lt has the right to change the design.specification dimension and structure of the machines without prior notice.
